Helical Tubine Meters
The HTM series of turbine meters is designed for high accuracy volume measurement of crude oils and other liquid hydrocarbons. M&T helical turbine meters are preferred for their high robustness and performance on liquid hydrocarbons custody transfer such as export loading terminals, FPSOs, pipelines, separators.
Helical Tubine Meters

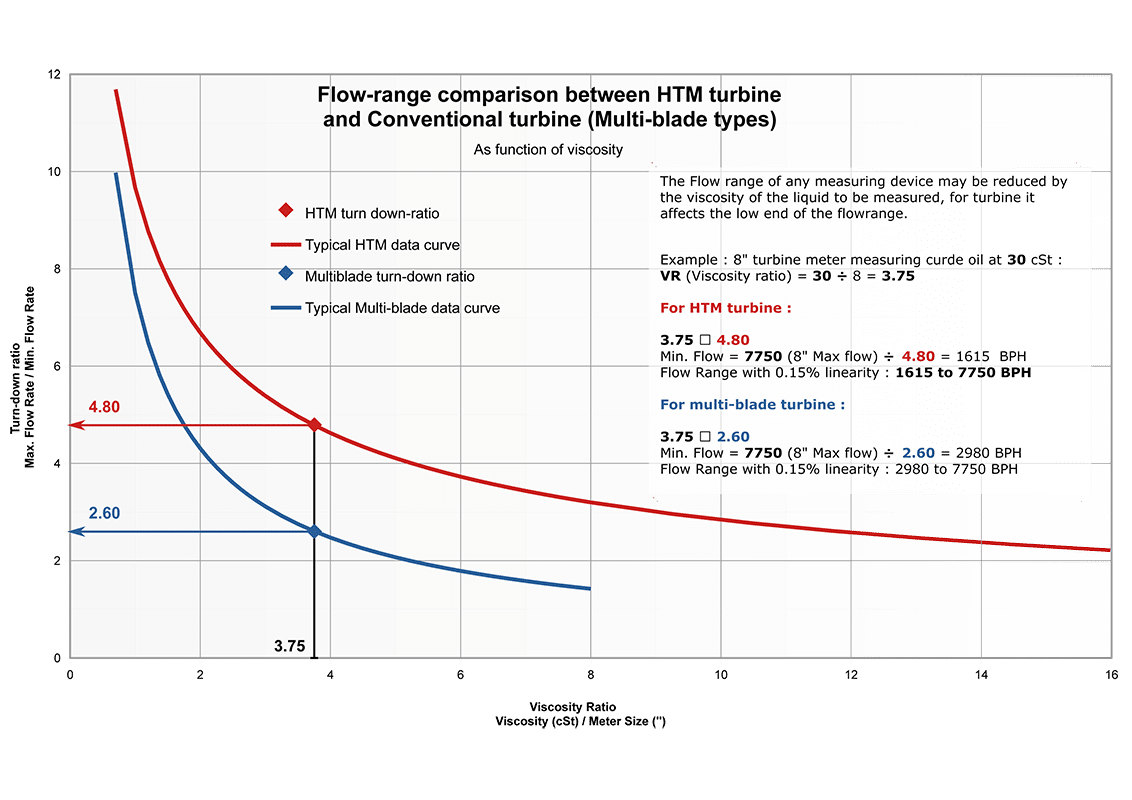

Performance & Technical Data
Features & Benefits
- Low to high viscosity design for single or multi-viscosity metering applications with stable meter factors
- Superior linearity and repeatability
- Counting starts from close to zero flow
- Helical rotor protected against severe corrosion
- Helical rotor rounded front profile for meter performance stability when fibres or contaminants are present in crude oil
- 3 part special design self cleaning tungsten carbide bearings for long life
- Stainless steel interchangeable measurement cartridge for easy site maintenance and downtime reduction
- Special materials available (duplex, hastelloy, inconel)
- Low pressure drop
Applications
- FSO & FPSO custody transfer (crude oil)
- On and offshore allocation metering (crude oil, condensates)
- Pipeline metering stations (crude oil, refined products)
- Tanker loading/offloading terminals (crude oil, refined products, petrochemicals)
- Storage management (crude oil, refined products, petrochemicals)
